SKU
DDL--900B

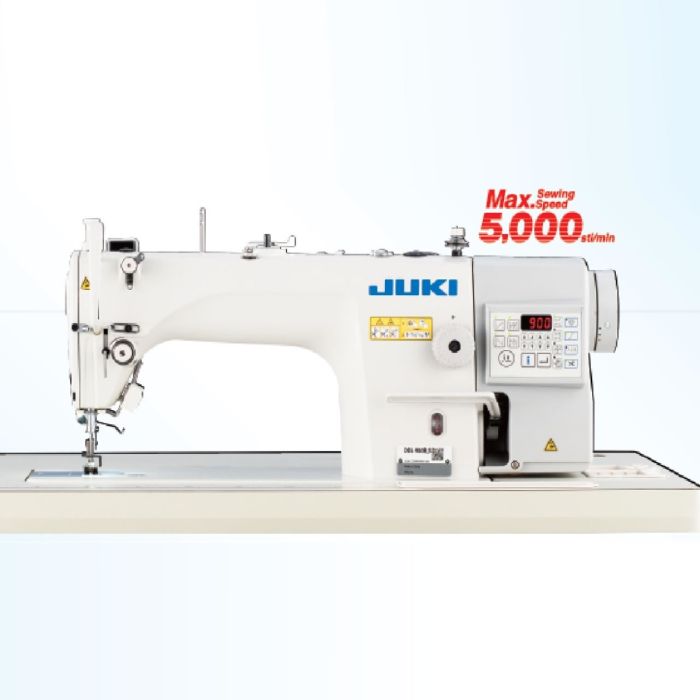

JUKI DDL - 900B Single Needle Lock Stitch Machine
"Oil Shielding System"
Direct-drive, High-speed, 1-needle, Lockstitch Machine with Automatic Thread Trimmer
Manufacturer Warranty
12 Month manufacturer warranty
Free Service
12 Month Free Service from Invoice Date
Distributor Warranty
3 Month IIGM Warranty
Designed in Japan
Features
- Elimination of oil stains on sewing products
- oiling and oil-quantity checking can be done with ease
- Broadened range of adjustment of the hook oil quantity
- Highly-functional control panel
- Compance and small energy-saving direct-drive motor
- Provided as standard with LED lighting which illuminates the needle entry area
- Highly-functional touch-back switch
Technical Specifications
| Model | DDL-900B-S | DDL-900B-H |
| Application | Standard | For heavy weight materials |
| Max.sewing speed | 5000sti/min | 4,000sti/min |
| Max. stitch length | 4mm | 4mm |
| Max. thread trimmer speed | 300 sti/min | |
| Needle bar stroke | 30.7 mm | |
| Direct motor | 400 W | |
| Power requirement | Single-phase 200V | |
| Power Consumption | 250 VA | |
| Total weight | Machine head: 36kg | |
